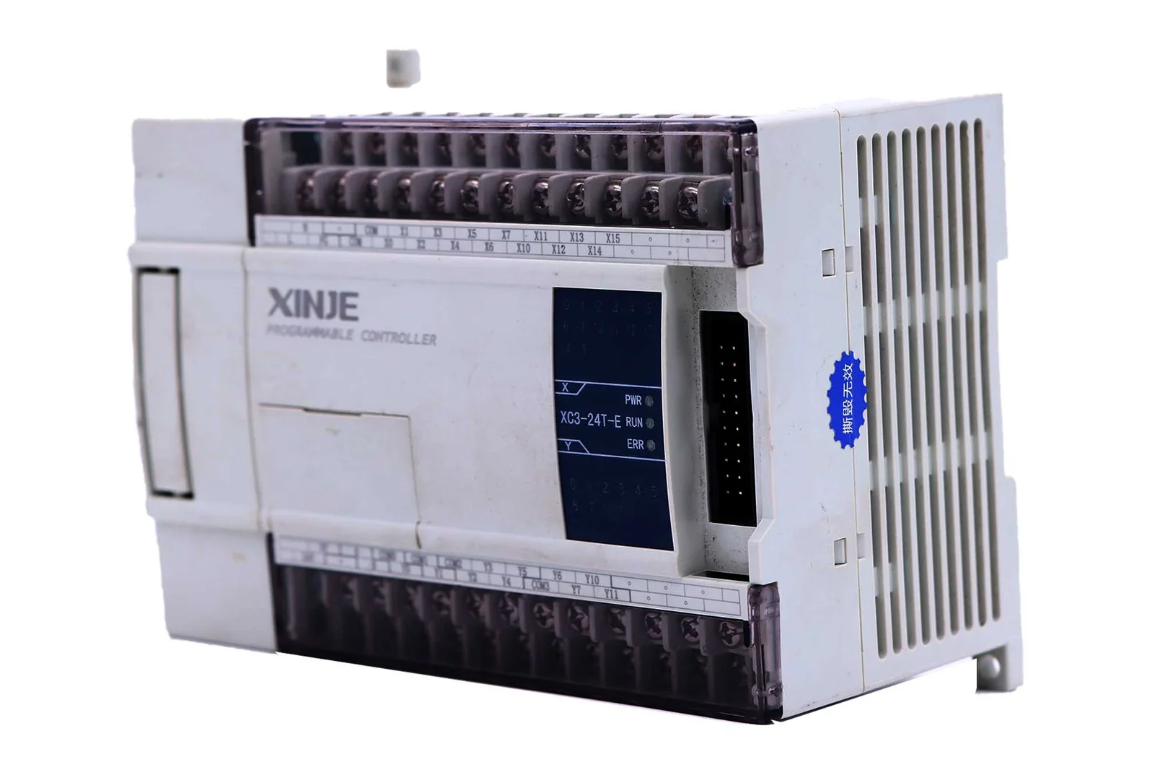

XINJE XC3-24RT-E PLC
TECHMART INDUSTRIAL COMPONENTS ARE AVAILABLE
6 Months Warranty
රු45,000.00 රු49,800.00
14DI/10DO, transistor output, AC220V, cannot expand BD board
- XINJE provides PLC products with powerful functions and rich models.
- XC3 Standard type: This sub-series belongs to the standard models of XC series PLC. They
could fulfill most using requirements.
Support two kinds of program languages
- In XC series PLC，besides statement format you can also adopt ladder chart on the
screen. And, these two formats could convert to the other.
Convenient MODBUS communication instructions
- With Modbus communication instruction, PLC can easily communicate with every
kind of peripheral device as long as they have Modbus protocol.
High speed pulse output
- The main units have two routes pulse output, output can be sequencial segments, each
segment of pulse number could be set freely. The pulse could reach 400KHz.
General specifications:
|
Item |
Specification |
|
Insulation Voltage |
Above DC 500V 2Mohm |
|
Noise Resistance |
1000V 1uS pulse for 1 minute |
|
Environment Temperature |
0centigrade degree ~6centigrade degree |
|
Ambient Humidity |
5%~95% |
|
COM 1 |
RS-232, be connected to host machine or HMI for programming or debugging |
|
COM 2 |
RS-485/RS-232, network or connect to intelligent instrument, inverter, etc. |
|
Installation |
M3 screw fixed or DIN46277 (35mm width) guide rail installation |
|
Grounding |
The third type grounding (Never perform common grounding with strong power system) |
Performance:
|
Item |
Specification |
|
|
Program Operation Mode |
Circulation scanning mode, timing scanning mode |
|
|
Program Mode |
Instructions and ladder chart |
|
|
Dispose Speed |
0.5us |
|
|
Power Failure Holding |
FlashROM |
|
|
User Program’s Capacity |
2500 steps |
|
|
I/O Points |
8 input points, 6 output points |
|
|
Output Format |
Relay |
|
|
Power Supply |
AC 230V |
|
|
Interior Coil’s Points (M) |
8512 points |
|
|
Timer(T) |
Points |
620 points |
|
Specification |
100mS timer: set time 0.1~3276.7 seconds 10mS timer: set time 0.01~327.67 seconds 1mS timer: set time 0.001~32.767 seconds |
|
|
Counter(C) |
Points |
635 Points |
|
Specification |
16 bits counter: Set value K0~32767 32 bits counter: Set value K0~2147483647 |
|
|
Data Register(D) |
8512 characters |
|
|
FlashROM Register(FD) |
2048 characters |
|
|
High-speed Count Format |
High speed counter, pulse output, exterior interruption |
|
|
Timing Scanning Interval Setting |
1~99mS |
|
|
Password Protection |
6 characters ASCII |
|
|
Self-diagnose Function |
Power on self-diagnose, monitor timer, grammar check |
|
